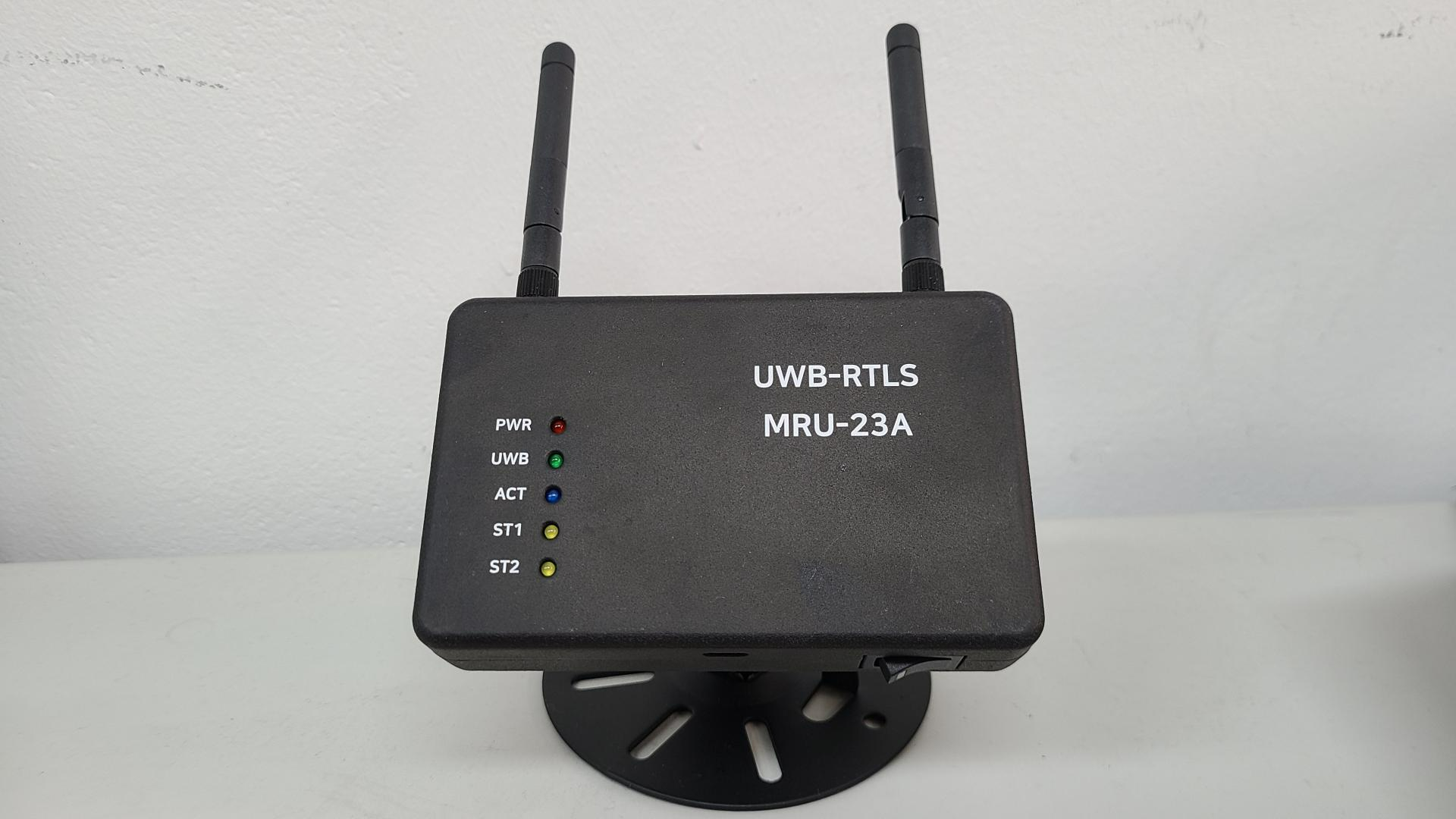

MRU-23A (UWB Anchor)

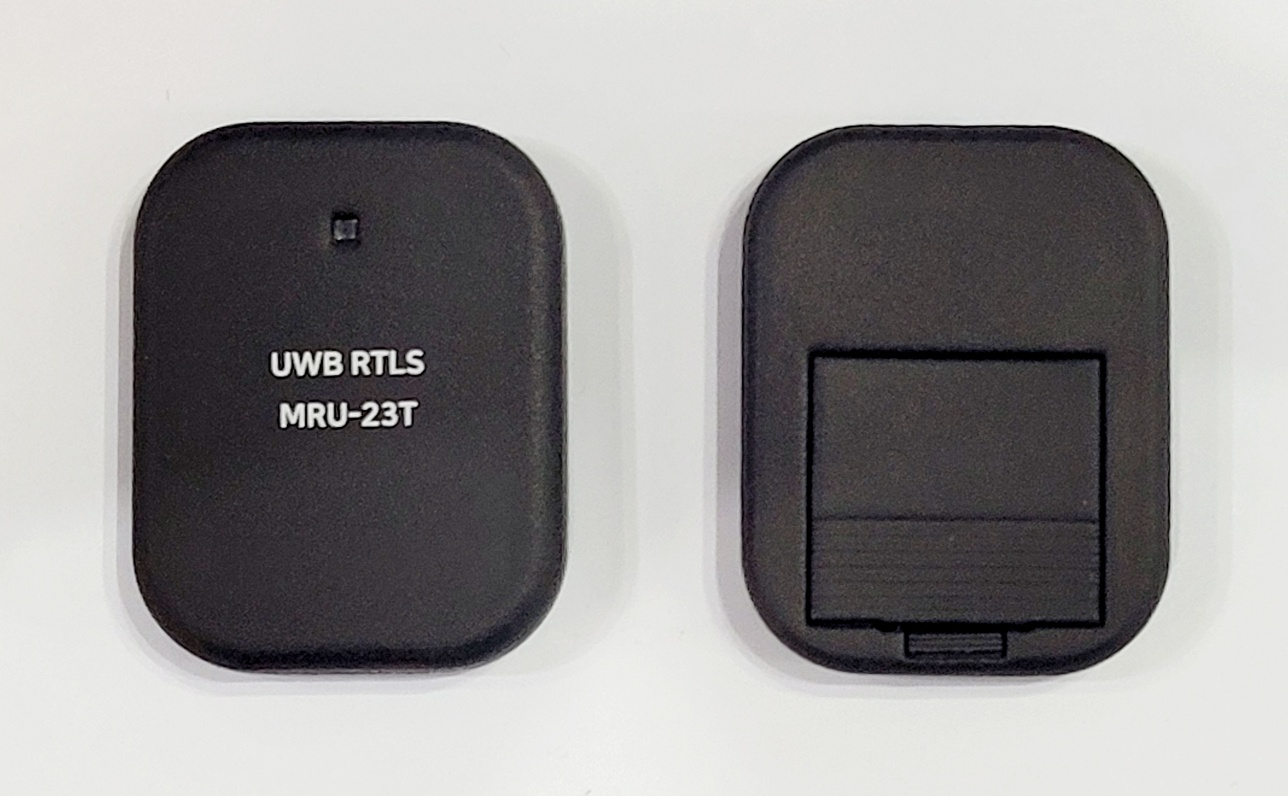

MRU-23T (UWB Tag)

• Fully integrated UWB Transceiver moudle

• IEEE 802.15.4-2015 and IEEE 802.15.4z BPRF compliant

• Fully aligned with FiRa™ PHY, MAC and certification development

• Supports Channels 5 (6.5 GHz) and 9 (8 GHz)

• Nordic nRF52833 SoC with BLE transceiver

• Supply voltage VCC: 2.5 V - 3.6 V

• AES 128/256 Security block

• Fully coherent receiver for maximum range and accuracy

• Power consumption optimized for battery applications

• Data rates of 850 kbps, 6.8 Mbps

• Maximum packet length of 1023 bytes for high data throughput applications

• Integrated MAC support features
